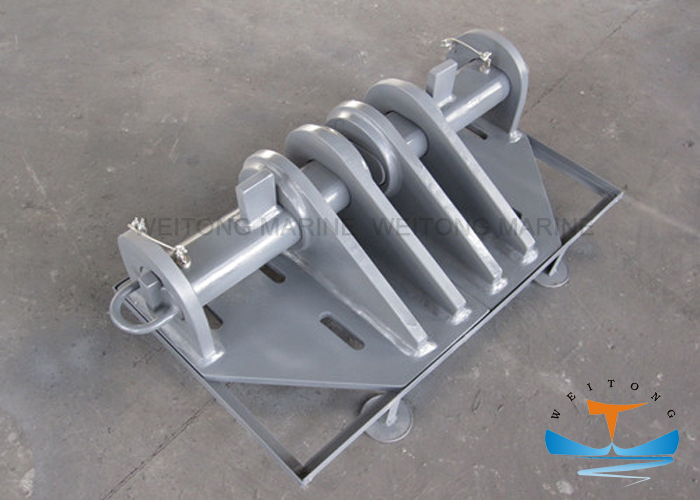

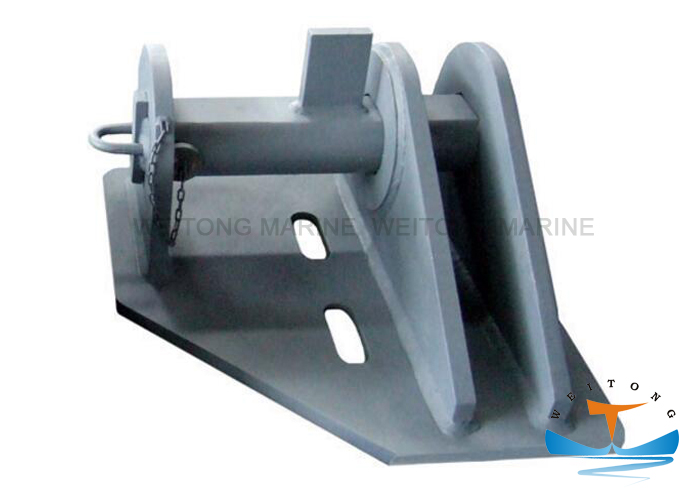

Marine Roller Lever Chain Stopper
Marine Roller Lever Chain Stopper is used to clamp the anchor chain when the vessel mooring, chain stopper transport the pull strength of anchor and chain to vessel, can withstand the pull of anchor chain so as to protect the anchor windlass not in pull state. Chain Stopper is installed on the deck between windlass and hawsepipe.
Material: cast steel
Process:casting,forging, welding
Finish: anti-rust paint
Withstand 80% of Chain Cable's breaking load
Certificate: ABS,CCS,DNV,LR,KR etc.
Specification
Anchor
Chain Dia | 12.5-4 | 16~17.5 | 19~20.5 | 22~24 | 26~28 | 30~32 | 34~36 | 38~40 | 42~44 | 46~48 | 50~52 | 54~56 | 58~60 | 62~64 | 66~68 |
| H | 112 | 138 | 154 | 176 | 198 | 226 | 248 | 274 | 296 | 324 | 346 | 372 | 394 | 422 | 444 |
| L | 176 | 214 | 234 | 254 | 286 | 320 | 350 | 388 | 424 | 454 | 480 | 514 | 542 | 574 | 604 |
| L1 | 102 | 130 | 146 | 168 | 192 | 214 | 240 | 266 | 294 | 316 | 338 | 362 | 378 | 402 | 424 |
| Weight(kg) | 8.6 | 18 | 26.7 | 39.4 | 58 | 85 | 113.5 | / | / | / | / | / | / | / | / |
