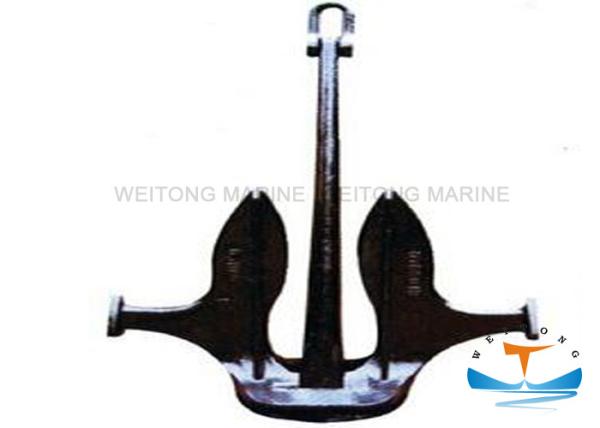

Marine High Holding Casting Power Hhp Matrosov Anchor for Boat
Description
Matrosol Anchor is one of High Holding Power Anchor, used for marine and offshore filed, the material is high grade casting steel, UT and MT Test and other testing assure high quality and good stability.
Material: Casting Steel
Weight: from 125KGS to 1500KGS
Specification
| Product Name: | Matrosol HHP Anchors |
| Material: | Cast Steel |
| Nominal Weight: | 125kg-1500kg |
| Type: | Matrosol type anchor |
| Standard: | Specification and Rules of Main Marine Classification Societies |
| Certificate: | ABS, BV, CCS, DNV-GL, KR, LR, NK, RINA, RS |
| Surface Treatment: | Black Painted, Galvanized |
High Holding Power Matrosov Anchor Specification
| Nominal Weight (KG) | Size(mm) |
| | A | B | C | D | E | ＠ |
| 25 | 130 | 570 | 690 | 385 | 214 | 28-30 |
| 35 | 148 | 620 | 760 | 420 | 230 | 30-32 |
| 50 | 170 | 680 | 840 | 480 | 250 | 30-32 |
| 75 | 190 | 770 | 950 | 540 | 270 | 30-32 |
| 100 | 210 | 830 | 1060 | 590 | 290 | 30-32 |
| 125 | 226 | 870 | 1130 | 630 | 310 | 30-32 |
| 150 | 242 | 910 | 1190 | 670 | 330 | 30-32 |
| 200 | 270 | 980 | 1300 | 740 | 370 | 30-32 |
| 250 | 294 | 1040 | 1380 | 800 | 400 | 33-37 |
| 300 | 312 | 1090 | 1480 | 850 | 430 | 33-37 |
| 400 | 342 | 1190 | 1630 | 930 | 480 | 33-37 |
| 500 | 366 | 1280 | 1750 | 1000 | 520 | 33-37 |
| 650 | 400 | 1385 | 1910 | 1090 | 565 | 33-37 |
| 750 | 418 | 1450 | 2000 | 1140 | 590 | 33-37 |
| 1000 | 452 | 1570 | 2170 | 1240 | 630 | 33-37 |
| 1250 | 488 | 1660 | 2280 | 1300 | 660 | 33-37 |
| 1500 | 515 | 1715 | 2370 | 1350 | 675 | 33-37 |
We supply about 20 types of marine anchors, including
Stockless Anchor, HHP anchor marine stock anchor, yacht anchor, and offshore anchor etc., details as bellow:
1) JIS stockless anchor with weight from 50kg to 29000kgs
2) Type A, B and C Hall anchor with weight from 50kg to 8300kgs
3) U. S.N stockless anchor with weight from 45kg to 13608kgs
4) Light weight anchor from 23kgs to 6804kgs
5) JIS stock anchor weight from 150kgs to 4500kgs
6) Admiralty anchor from 50kg to 5000kgs
7) High Holding Power(HHP) Matrosol Anchor from 25kgs to 1500kgs
8) Speck anchor from 100kgs to 18800kgs
9) M type SPEK anchor from 80kgs to 20000kgs
10) AC-14 HHP stockless anchor from 56kgs to 20000kgs
11) Danforth High Holding Power(HHP) anchor from 20kgs to 6000kgs
12) Welding type high holding power(HHP) stockless anchor from 12kgs to 15400kgs
13) BALDT stockless anchor from 23kgs to 15876kgs
14) AR6 and BR6 anchor from 50kgs to 15400kgs
