Marine Mooring Panama Type AC Boat Bulwark Mounting JIS F2017-82 Marine Ship Chock
Description
Mooring Chock C Type CB34-76 can guide the rope from the inboard to the outboard at certain direction, change the trend of rope and limit its place. It can reduce the abrasion between rope with gunwale, avoid increasing the stress due to a sharp bend. Closed Chock is Widely used for small boats,ships,tug,cargo vessel,tankers etc. We can manufactures chocks in a wide variety of sizes and styles,also can customized the chock according to your drawing.
Mooring Chock C Type CB34-76 Type A,Type B,Type C and Type D are available as well.
Material: ZG230-450C
Weight: 37.5KGS,63KGS,97KGS,127KGS,210KGS,296KGS
Manufacture Certificate, CCS Certificate, BV Certificate and LR Certificate are available
Specification
| Max.Steel Wire Dia. | Hemp Rope C. | Max.Nylon Wire Dia. | L | L1 | B | B1 | B2 | B3 | H | H1 | R | R1 | b2 | b3 | t | Weight(kg) |
| 15 | 125 | 30 | 150 | 400 | 110 | 170 | 118 | 60 | 250 | 115 | 48 | 102 | 40 | 26 | 25 | 37.5 |
| 18.5 | 160 | 35 | 200 | 500 | 150 | 190 | 139 | 71 | 317 | 146 | 65 | 133 | 50 | 32 | 30 | 63 |
| 22.5 | 200 | 45 | 250 | 600 | 190 | 220 | 161 | 82 | 382 | 177 | 85 | 165 | 55 | 36 | 35 | 97 |
| 28 | 230 | 55 | 300 | 650 | 220 | 250 | 172 | 88 | 436 | 198 | 95 | 203 | 60 | 42 | 40 | 127 |
| 38.5 | 270 | 70 | 400 | 750 | 290 | 280 | 185 | 95 | 513 | 240 | 125 | 273 | 65 | 47 | 45 | 210 |
| 43.5 | 325 | 90 | 500 | 880 | 350 | 300 | 199 | 102 | 589 | 277 | 147 | 350 | 70 | 51 | 50 | 296 |
We provide Kinds of Marine Chocks as following:
1. (DIN81915) Type Din Chocks,
2. Type U.S.Panama Chock,
3. JIS F2005-1975 Closed Chocks,
4. JISF 2007-1976 Mooring Chock(A),
5. JISF2017-1982 Panama Chock(AC),JISF2017-1982 Panama Chock(BC)
6. JISF2030-1978 Single Point Mooring Pipes(A),JISF2030-1978 Single Point Mooring Pipes(B)
About US
Weitong Marine focus on developing and offering the most competetive marine products for worldwide clients with best service:
1. Quality Assurance & Inspection
We guarantee the quality,not just because we have a complete rigorous management, production and inspection processes to control the quality and avoid detail mistake, but also we attach much importance to customers’ satisfactory of product quality. What’s more, Mill Test Certificate can be provided for general products, and most of our products are approved by CCS, ABS, DNV, BV, NKK, KR, LR, GL, RINA etc.
2. Efficiency
Your request is promised to be reponsed within1-12 hours. Our experienced sales team get technical support from our engineer team to ensure swift offer and good communication.
3. On Time Delivery
We have rigorous production schedule and professional follow-up process to control the production time. Clients will be informed about the production process in time. Besides, we cooperate with reliable logistic partners to assure the goods to be delivered to you punctually.
4. Customization
If you need customization service, our experienced engineers are able to design the product as per your request or application.
5. Product Range
All marine equipment, accessories and technique solution can be offered.
6. After sales service
After shipping, we keep tracking the shipment, and once goods arrived, we will positively contact client for feedback.
We always insist on the values of “customer-oriented, integrity first” in global trade business. Whenever you need inquiry or help, you can always turn to Weitong Marine, we are always available to reply with answer or provide help over the phone, by email or other.
Should you have any comment or inquiry, please feel free to contact us for more details
Ms kate
Tel: +86-756-8169003
Phone: +86-13923317268
sales@weitongmarine.com

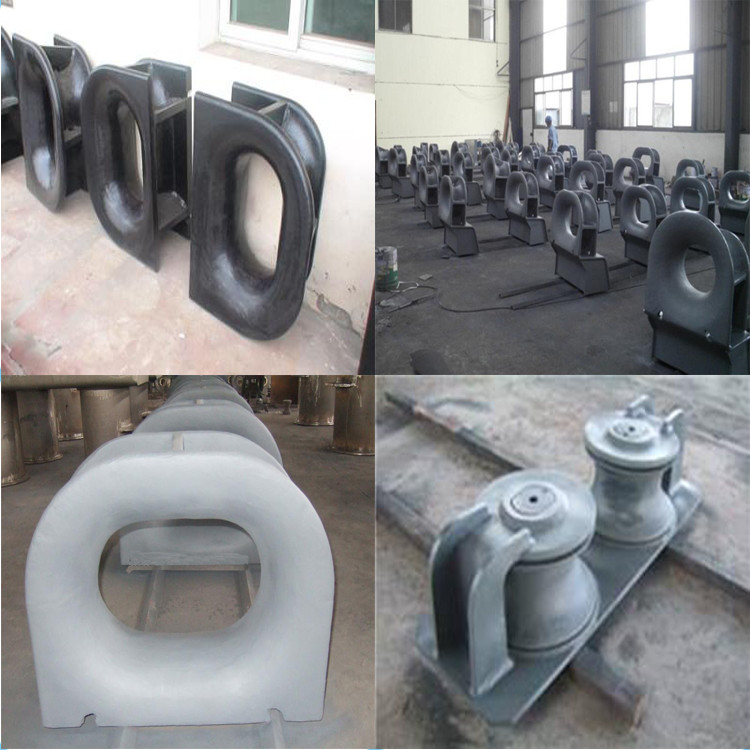

Ohter Product Photos
