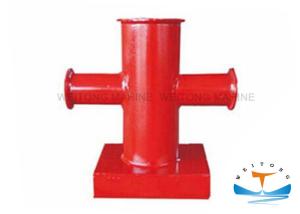

Cruciform Bollards Single Cross Bitt GB/T 10106-88
Cruciform Bollards Single Cross Bitt GB/T 10106-88
Certificate: ABS, BV, GL, DNV, CCS,mill certificate etc.
Specification
| Nominal Dia. | Suitable Cable's MBL KN(tf) | Steel wire | Synthetic
Fiber Rope | Hemp Rope | H | B | h | D | D1 | D2 | D3 | d | Weight (Kg) |
| 150 | 117(12) | 13 | 30 | 44 | 480 | 460 | 280 | 168 | 114 | 206 | 158 | 240 | A | 31 |
| B | 33 |
| 200 | 225(26) | 19.5 | 45 | 64 | 560 | 520 | 320 | 219 | 168 | 260 | 210 | 280 | A | 62 |
| B | 66 |
| 250 | 382(39) | 26 | 56 | 80 | 640 | 610 | 360 | 273 | 219 | 310 | 260 | 340 | A | 98 |
| B | 105 |
| 300 | 549(56) | 30 | 70 | 104 | 680 | 660 | 380 | 325 | 273 | 360 | 310 | 400 | A | 143 |
| B | 153 |
| 350 | 686(70) | 34.5 | 77 | 120 | 720 | 720 | 420 | 351 | 273 | 400 | 314 | 440 | A | 192 |
| B | 204 |
