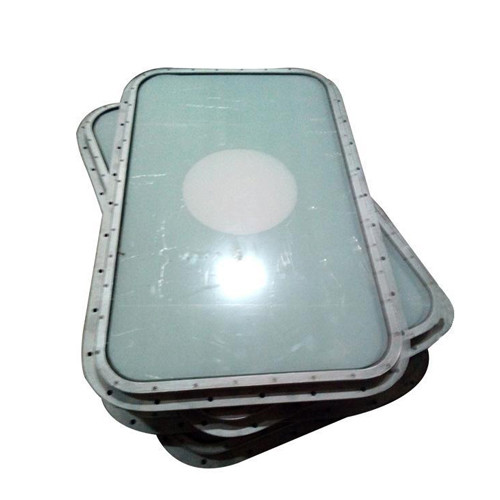

Marine Fire Proctecting Firepoof Rectangular Window for Ship
This fire protecting marine window is made of aluminum or steel, it is used for oil tanker, drilling platform, chemical vessel and oil area tug which has a less than 60 flash point.
Standard: CB/T5746-2001
Specification
| Nominal Size | Glass Size | Glass Thickness | External Size | Cutout in Bulkhead |
| WxH(mm) | W3xH3xR3(mm) | Heavy | Medium | W2xH2(mm) | W1xH1xR1(mm) |
| 355x500 | 395x540xR70 | 10 | 8 | 487x632 | 485x630xR115 |
| 450x630 | 490x670xR120 | 12 | 8 | 582x762 | 580x760xR165 |
| 500x710 | 540x750xR120 | 15 | 10 | 632x842 | 630x840xR165 |
| 900x630 | 940x670xR120 | 15 | 12 | 1032x762 | 1030x760xR165 |
| 1100x710 | 1140x750xR120 | 19 | 12 | 1232x842 | 1230x840xR165 |
| 1200x800 | 1240x840xR120 | 19 | 15 | 1332x932 | 1330x930xR165 |
We offers 3 types customized marine windows: standard duty, medium duty and heavity duty.
Material: Aluminum, Steel, Copper
Glass thickness: 6,8,10,12,15,18mm...
Open form: open type or fixed type
Way of installation bolt-on, welt-in
Main Types:
Fixed Rectangular Window for Wheel House
Ship's Ordinary Rectangular Window
Side Scuttles for Ship (also called as Porthole)
Skylight
Aluminum Alloy Sound Proof Window
Aluminium Alloy Sliding Window
Fireproof Window etc.
About US
Weitong Marine focus on developing and offering the most competetive marine products for worldwide clients with best service:
1. Quality Assurance & Inspection
We guarantee the quality,not just because we have a complete rigorous management, production and inspection processes to control the quality and avoid detail mistake, but also we attach much importance to customers’ satisfactory of product quality. What’s more, Mill Test Certificate can be provided for general products, and most of our products are approved by CCS, ABS, DNV, BV, NKK, KR, LR, GL, RINA etc.
2. Efficiency
Your request is promised to be reponsed within1-12 hours. Our experienced sales team get technical support from our engineer team to ensure swift offer and good communication.
3. On Time Delivery
We have rigorous production schedule and professional follow-up process to control the production time. Clients will be informed about the production process in time. Besides, we cooperate with reliable logistic partners to assure the goods to be delivered to you punctually.
4. Customization
If you need customization service, our experienced engineers are able to design the product as per your request or application.
5. Product Range
All marine equipment, accessories and technique solution can be offered.
6. After sales service
After shipping, we keep tracking the shipment, and once goods arrived, we will positively contact client for feedback.
We always insist on the values of “customer-oriented, integrity first” in global trade business. Whenever you need inquiry or help, you can always turn to Weitong Marine, we are always available to reply with answer or provide help over the phone, by email or other.
Should you have any comment or inquiry, please feel free to contact us for more details
Ms Kate
Tel: +86-756-8169003
Phone: +86-13923317268
sales@weitongmarine.com

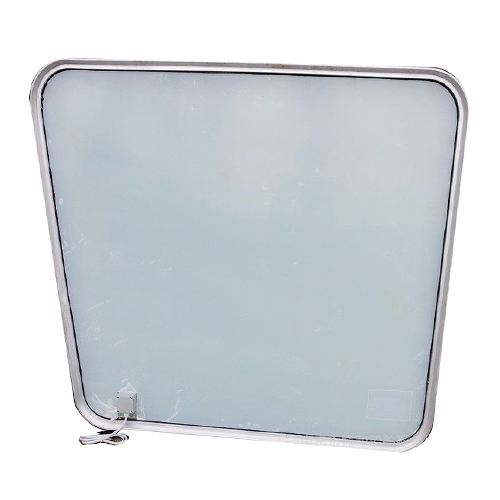

Ohter Product Photos
