Marine A0 A60 Fire Resistant Side Scuttle Window

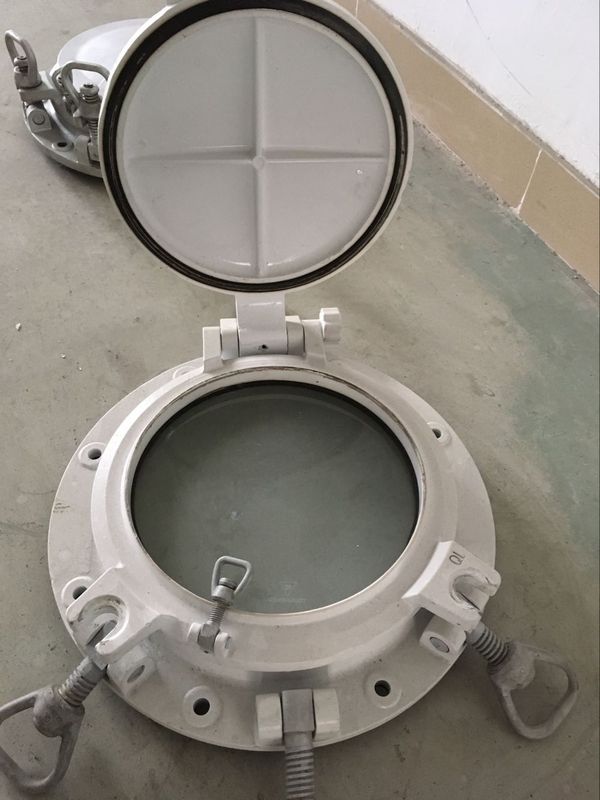

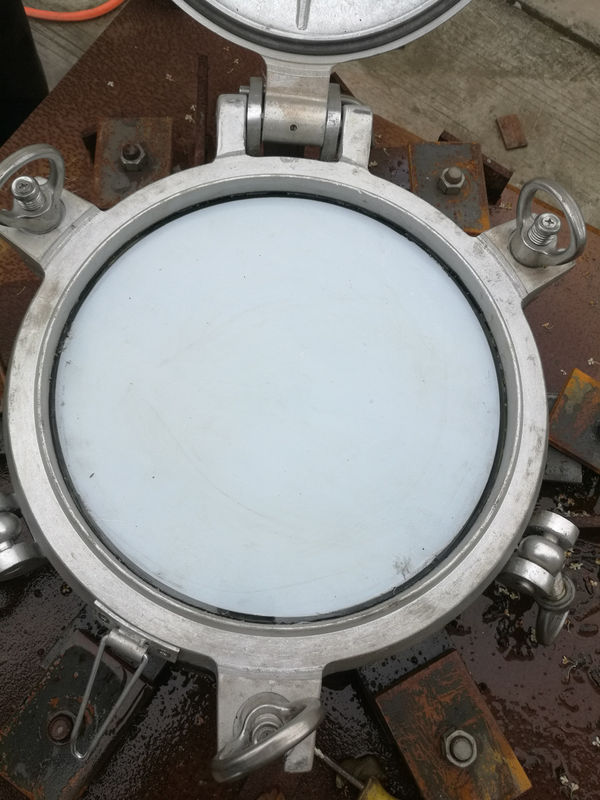

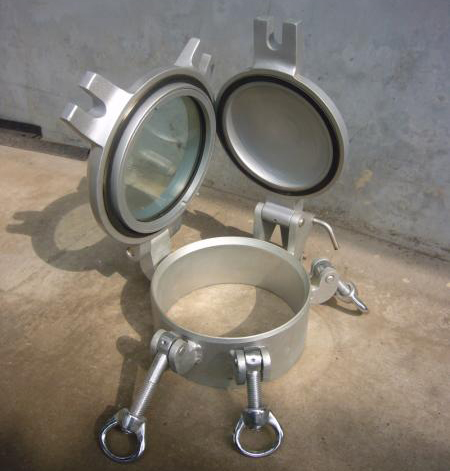

Fireproof Side Scuttle (Firepoof Porthole) is a kind of fire resistant side scuttles made of steel, aluminum, stainless steel. It can be installed by welded or bolted; suitable for accommodations & other marine instructments with A60 fireproof requirement.
Standard: GB/T14413-93, IMO Res MSC 61(67), IMO Res. A.754(18)
Fire protection class: A60
Main Material:
Frame: Steel
Glass: Fireproof Glass
Specification
| Nominal Size D | Hole Size of Casing Wall | Size of Outside | Main Glass Thick | Size of Glass |
| D2 | t | D3 |
| | Type A | Type B | | Heavy | Medium | Type A | Type B |
| Φ200 | Φ383 | Φ425 | Φ422 | 10 | 8 | Φ240 | Φ472 |
| Φ250 | Φ433 | Φ475 | Φ472 | 12 | 8 | Φ290 | Φ522 |
| Φ300 | Φ483 | Φ535 | Φ522 | 15 | 10 | Φ340 | Φ572 |
| Φ350 | Φ533 | Φ575 | Φ572 | 15 | 12 | Φ390 | Φ622 |
| Φ400 | Φ583 | Φ625 | Φ622 | 19 | 12 | Φ440 | Φ672 |
| Φ450 | Φ633 | Φ675 | Φ672 | 19 | 15 | Φ490 | Φ722 |
We offers 3 types customized marine windows: standard duty, medium duty and heavity duty.
Material: Aluminum, Steel, Copper
Glass thickness: 6,8,10,12,15,18mm...
Open form: open type or fixed type
Way of installation bolt-on, welt-in
Main Types:
Fixed Rectangular Window for Wheel House
Ship's Ordinary Rectangular Window
Side Scuttles for Ship (also called as Porthole)
Skylight
Aluminum Alloy Sound Proof Window
Aluminium Alloy Sliding Window
Fireproof Window etc.
