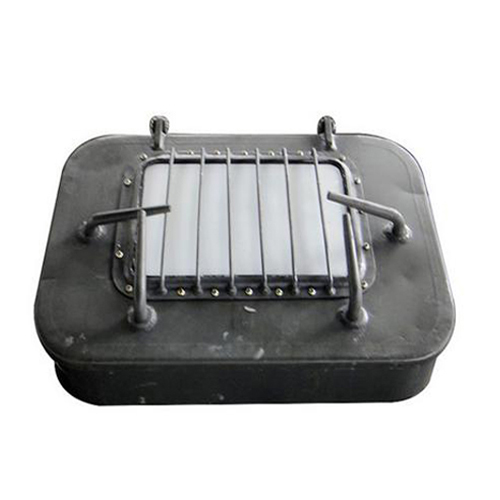

Marine Rectangular Window
Marine Rectangular Window is a kind of import marine windows for ship, there are several types of marine rectangular windows
Series:
N series regular series:common rectangular windows with a toughened safety glass pane
P series fire-resistant series:Rectangular windows used in B class fire resistant divisions.
H series heated series:rectangular windows with an electri-heated glass pane
| Series | Type | Nominal size | Opening size of casing wall | Fixed frame |
| W*h | W1*h1 | r | W2*h2 | W3*h3 |
| N P
H | 1 | 300*425 | 352*477 | 76 | 348*473 | 430*555 |
| 2 | 355*500 | 407*552 | 76 | 403*548 | 485*630 |
| 3 | 400*560 | 452*612 | 76 | 448*608 | 530*690 |
| 4 | 450*630 | 402*682 | 126 | 498*678 | 580*760 |
| 5 | 500*710 | 552*762 | 126 | 548*758 | 630*840 |
| 6 | 560*800 | 612*852 | 126 | 608*848 | 690*930 |
| 7 | 900*630 | 952*682 | 126 | 948*678 | 1030*760 |
| 8 | 1000*710 | 1052*762 | 126 | 1048*758 | 1130*840 |
| 9 | 1100*800 | 1152*852 | 126 | 1148*848 | 1230*930 |
We offers 3 types customized marine windows: standard duty, medium duty and heavity duty.
Material: Aluminum, Steel, Copper
Glass thickness: 6,8,10,12,15,18mm...
Open form: open type or fixed type
Way of installation bolt-on, welt-in
Main Types:
Fixed Rectangular Window for Wheel House
Ship's Ordinary Rectangular Window

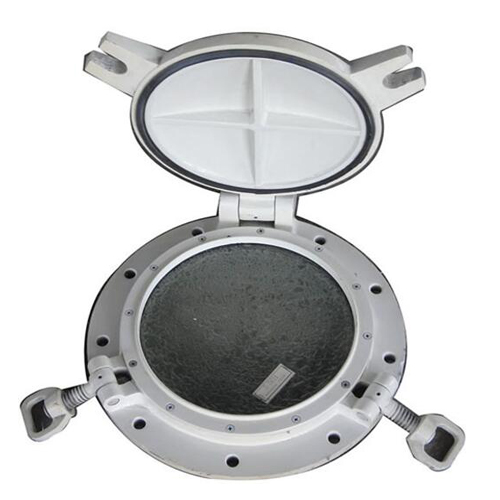

Side Scuttles for Ship (also called as Porthole)
Skylight
Aluminum Alloy Sound Proof Window
Aluminium Alloy Sliding Window
Fireproof Window etc.
