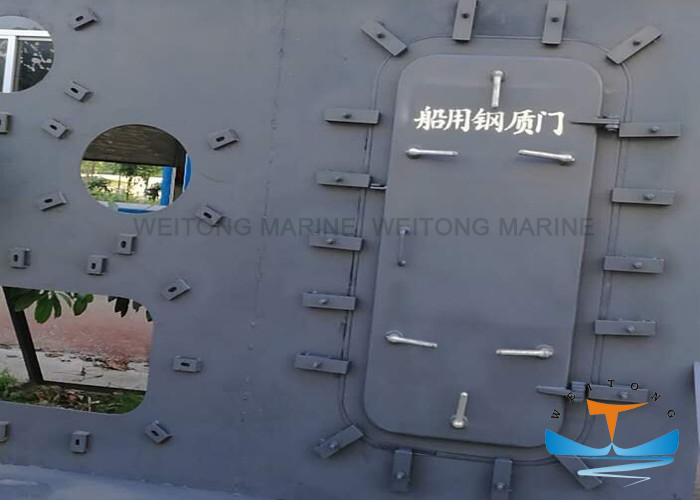

Marine Steel Single Fireproof Quick Action Watertight Door with Hand Wheel for Vessel
Description
A60 fire-proof watertight steel door is made of high quality steel with the functions of fire protection and waterproofness. Pressure Watertight A60 Door is used for the water pressure is not more than 0.5Mpa and the max size is 1200*2300(W*H). It's Suitable for accommodations with A60 fireproof and hydraulic watertight requirements. And Passed fire test held by Shanghai far east fire testing center.
Specification
| Item | Marine High Pressure Resistant Watertight Door |
| Door Type | Pressure Resistant Watertight Door ( ≤ 0.15 MP ) |
| High Pressure Resistant Watertight Door ( ≤ 0.5 MP ) |
| A60 High Pressure Resistant Watertight Door ( ≤ 0.5 MP ) |
| Pressure | ≤ 0.5 MP / ≤ 0.15 MP |
| Material | Steel or Stainless Steel |
| Opening Type | handwheel quick open |
| Fireproof Class | A60 / None |
| Surface Finish | Door Frame:baking finish for steel |
| Thickness | minimum 8 mm |
the thickness of the door depend on the size and Pressure of door. |
| Optional Accessories | Door lintel plate, tempered glass , door closer,lock |
| Opening Direction | left or right and outside(as the drawing or client requirements ) |
| Size | as the drawing or client requirements |
Other Marine Doors
We offers kinds of deck marine doors:Waterproof door,Fireproof door,Gastight door,Sliding door and etc.Our Marine doors must pass the weathertight /watertight/ gastight/ fireproof/ soundproof test, and suitable for commercial vessels, LNG carriers, fish boats, tankers, yachts.
* Material:steel,aluminum,stainless steel
* Installment: Welded or Bolted.
* Operation type: dog-clip, single lever, handwheel
* Bare, painted, anodized, galvanized finishes for option
Full selection of door specifications are available for bellow main marine doors
* Waterproof door:Marine weathertight single-leaf steel or aluminium door,Quick acting steel weathertight door,Hydraulic sliding weathertight door.
* Fireproof door:A0,A15,A30,A60,B0,B15 fire class steel door.
* Gastight door:Inflation gastight door,Mechanical pressure clamp gastight door.
* Sliding door:aluminum sliding door, Hydraulic sliding door.
* Hollow door:aluminium cabin hollow door,G.R.P cabin hollow door.
* Related products like marine window and marine hatch cover can also be provided.
