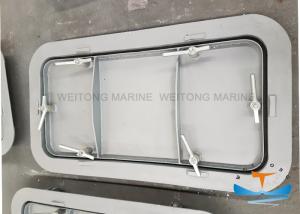

Single Leaf Marine Watertight Doors 0.06Mpa-0.5Mpa Pressure With Singlle Handle

  • 1
  • 2
  • 3

Brand Name : WEITONG MARINE

Model Number : WTMD118

Certification : GL/DNV/EC/CCS etc.

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, L/C

Delivery Time : 15-30 days

Packaging Details : Standard Export Packing

Material : Marine Steel

Type : Watertight

Hinge : Singlle Handle

Thickness : 8mm/10mm/12mm

Pressure : 0.06Mpa to 0.5Mpa.

Keywords : Steel Watertight Door

Contact Now

Marine Single Leaf Steel Weathertight Door 0.06Mpa-0.5Mpa Pressure Boat Doors

Description

We provide 4 class A`B`C`D, and 8 types for marine single leaft steel weathertight door.
AF-Class A, square corner ; AY-Class A, round corner; BF-Class B, square corner; BY-Class B, round corner; CF-Class C, square corner; CY-Class C, round corner; DF-Class D, square corner; DY-Class D, round corner


Door Class and Applicable Position
Class A Front bulkhead of the first superstructure above freeboard deck(in the range 0.1-0.7L forward after perpendicular)
Class B Front bulkhead of the second superstructure above freeboard deck(in the range 0.1-0.7L forward after perpendicular), and the aft bulkhead & side wall of the first superstructure.
Class C Front bulkhead of the third superstructure above freeboard deck(in the range 0.2-0.6L forward after perpendicular),and the aft bulkhead & side wall of the second superstructure.
Class D Front bulkhead of the fourth superstructure above freeboard deckand the aft bulkhead & side wall of the third superstructure.


Specification

Type Standard Code Doorway Size Door Leaf Size Wall Opening Size Door Leaf Thickness Stiffener
Length of vessel L (meter) H3
HxW H1xW1 AF AY ≤80 ＞80 ≤80 80～120 120～150 150～210 210～300
AF AY 1050 1000x500 1055x555 1100x600xR80 1100x600xR150 6 — 75x6 — — — — —
1260 1200x600 1255x655 1300x700xR80 1300x700xR150 6 — 75x6 — — — — 400
1460 1400x600 1455x655 1500x700xR80 1500x700xR150 6 8 — 65x9 65x9 75x9 75x9 300
1475 1400x750 1455x805 1500x850xR80 1500x850xR150 6 8 — 75x9 75x12 90x9 90x12 300
1490 1400x900 1455x955 1500x1000xR80 1500x1000xR150 — 8 — 90x9 90x12 100x12 100x12 300
1660 1600x600 1655x655 1700x700xR80 1700x700xR150 — 8 — 65x9 75x9 75x12 75x12 340
1675 1600x750 1655x805 1700x850xR80 1700x850xR150 — 8 — 75x12 90x9 90x12 90x12 340
1690 1600x900 1655x955 1700x1000xR80 1700x1000xR150 — 8 — 90x12 100x12 125x9 125x9 340

Type Standard Code Doorway Size Door Leaf Size Wall Opening Size Door Leaf Thickness Stiffener
Length of vessel L (meter) H3
HxW H1xW1 BF BY ≤80 ＞80 ≤80 80～150 150～210 210～300 150～210 210～300
BF BY 1050 1000x500 1055x555 1100x600xR80 1100x600xR150 6 — 50x5 — — — — — —
1260 1200x600 1255x655 1300x700xR80 1300x700xR150 6 — 50x5 — — — — — 400
1460 1400x600 1455x655 1500x700xR80 1500x700xR150 6 8 50x5 65x6 65x9 65x9 65x9 65x9 470
1475 1400x750 1455x805 1500x850xR80 1500x850xR150 6 8 50x5 65x9 75x9 75x9 75x9 75x9 470
1490 1400x900 1455x955 1500x1000xR80 1500x1000xR150 — 8 — 75x9 75x12 75x12 75x12 75x12 470
1660 1600x600 1655x655 1700x700xR80 1700x700xR150 — 8 — 65x6 65x9 65x9 65x9 65x9 540
1675 1600x750 1655x805 1700x850xR80 1700x850xR150 — 8 — 65x9 75x9 75x12 75x9 75x12 540
1690 1600x900 1655x955 1700x1000xR80 1700x1000xR150 — 8 — 75x9 75x12 90x12 75x12 90x12 540

Type Standard Code Doorway Size Door Leaf Size Wall Opening Size Door Leaf Thickness Stiffener
Length of vessel L (meter) H3
HxW H1xW1 CF CY ≤80 ＞80 ≤80 80～140 140～300
CF CY 1050 1000x500 1055x555 1100x600xR80 1100x600xR150 4 — 50x5 — — —
1260 1200x600 1255x655 1300x700xR80 1300x700xR150 4 — 50x5 — — 400
1460 1400x600 1455x655 1500x700xR80 1500x700xR150 4 6 50x5 65x6 65x6 470
1475 1400x750 1455x805 1500x850xR80 1500x850xR150 4 6 50x5 65x6 65x6 470
1490 1400x900 1455x955 1500x1000xR80 1500x1000xR150 — 6 — 65x6 65x9 470
1660 1600x600 1655x655 1700x700xR80 1700x700xR150 — 6 — 65x6 65x6 540
1675 1600x750 1655x805 1700x850xR80 1700x850xR150 — 6 — 65x6 65x6 540
1690 1600x900 1655x955 1700x1000xR80 1700x1000xR150 — 6 — 65x6 65x9 540

Product Tags:

aluminum marine doors



watertight doors on ships


Type Standard Code Doorway Size Door Leaf Size Wall Opening Size Door Leaf Thickness Stiffener
HxW H1xW1 DF DY WidthxThickness H3
DF DY 1050 1000x500 1055x555 1100x600xR80 1100x600xR150 4 50x5 —
1260 1200x600 1255x655 1300x700xR80 1300x700xR150 4 50x5 —
1460 1400x600 1455x655 1500x700xR80 1500x700xR150 4 50x5 —
1475 1400x750 1455x805 1500x850xR80 1500x850xR150 4 50x5 —
1490 1400x900 1455x955 1500x1000xR80 1500x1000xR150 4 50x5 600
1660 1600x600 1655x655 1700x700xR80 1700x700xR150 6 65x6 —
1675 1600x750 1655x805 1700x850xR80 1700x850xR150 6 65x6 —
1690 1600x900 1655x955 1700x1000xR80 1700x1000xR150 6
