Polyurethane EVA Foam Filled Marine Guard Floatin Buoy Fender
Description
Foam Filled Fender a kind of compressed fender which builed outer protective layer with polyurea material and adopts polyurethane foaming material or plastic foaming as buffer medium. The destructive effects on docks and ships will be reduced by the compression to absorb the impact energy from ships in the course of using polyurethane floating fender.
Widely used for the docks, boatyard and ship boards etc.
Features:
1.Having the capability of floating, not easily influenced by the ebb and flow of the tide.
2.Simple, effective internal engineering
3.Easy and reliable mounting.
4.Low reaction force and high energy absorption.
Specification
| Size(mm) | Deflection 60% | Weight(±3%) (KG) |
| Reaction Force(KN) | Enery Absorption(KJ) |
| 300×500 | 43 | 5 | 7 |
| 400×800 | 54 | 7 | 17 |
| 500×1000 | 89 | 32 | 23 |
| 700×1500 | 129 | 24 | 85 |
| 1000×1500 | 190 | 62 | 175 |
| 1000×2000 | 298 | 80 | 240 |
| 1200×2000 | 335 | 110 | 350 |
| 1350×2500 | 460 | 173 | 550 |
| 1500×3000 | 615 | 263 | 770 |
| 1700×3000 | 678 | 330 | 1075 |
| 2000×3500 | 940 | 535 | 1530 |
| 2000×4000 | 1095 | 630 | 1980 |
| 2000×4500 | 1250 | 690 | 2500 |
| 2300×4000 | 1380 | 735 | 2885 |
| 2300×5500 | 1860 | 1133 | 3480 |
| 2500×4000 | 1455 | 980 | 3390 |
| 2500×5500 | 1960 | 1230 | 3985 |
| 3000×5000 | 2180 | 1755 | 5350 |
| 3000×6000 | 2455 | 1960 | 6680 |
| 3300×4500 | 1960 | 1760 | 5750 |
| 3300×6500 | 3075 | 2830 | 8400 |
| 3500×7000 | 3975 | 3162 | 10100 |
About US
Weitong Marine focus on developing and offering the most competetive marine products for worldwide clients with best service:
1. Quality Assurance & Inspection
We guarantee the quality,not just because we have a complete rigorous management, production and inspection processes to control the quality and avoid detail mistake, but also we attach much importance to customers’ satisfactory of product quality. What’s more, Mill Test Certificate can be provided for general products, and most of our products are approved by CCS, ABS, DNV, BV, NKK, KR, LR, GL, RINA etc.
2. Efficiency
Your request is promised to be reponsed within1-12 hours. Our experienced sales team get technical support from our engineer team to ensure swift offer and good communication.
3.On Time Delivery
We have rigorous production schedule and professional follow-up process to control the production time. Clients will be informed about the production process in time. Besides, we cooperate with reliable logistic partners to assure the goods to be delivered to you punctually.
4. Customization
If you need customization service, our experienced engineers are able to design the product as per your request or application.
5. Product Range
All marine equipment, accessories and technique solution can be offered.
6.After sales service
After shipping, we keep tracking the shipment, and once goods arrived, we will positively contact client for feedback.
We always insist on the values of “customer-oriented, integrity first” in global trade business. Whenever you need inquiry or help, you can always turn to Weitong Marine, we are always available to reply with answer or provide help over the phone, by email or other.
Should you have any comment or inquiry, please feel free to contact us for more details
Ms kate
Tel: +86-756-8169003
Phone: +86-13923317268
Website: www.weitongmarine.com
sales@weitongmarine.com

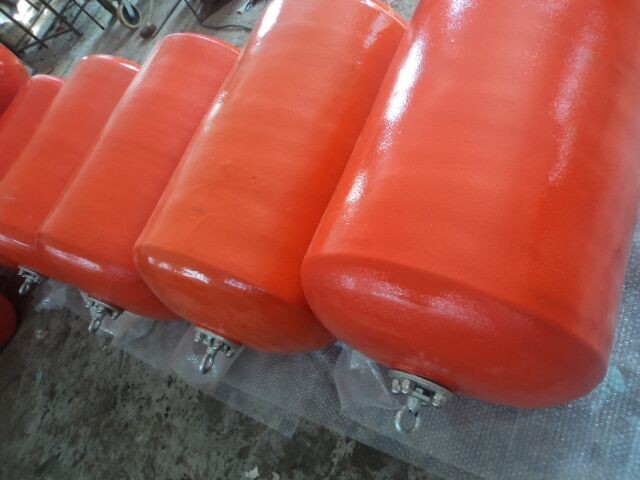

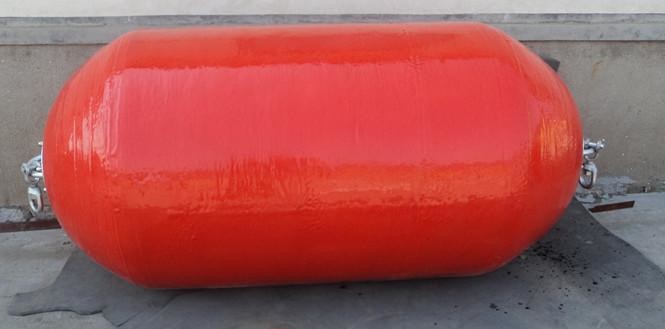

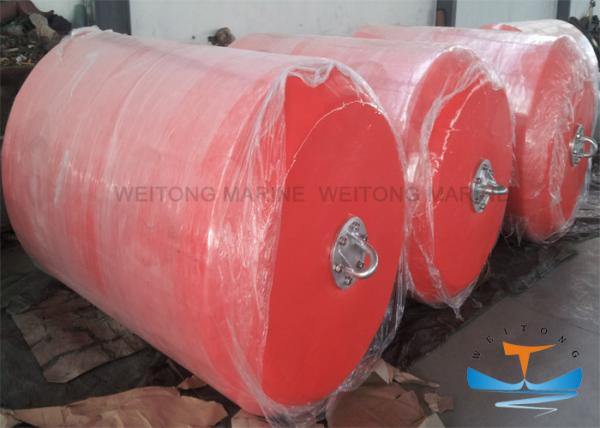

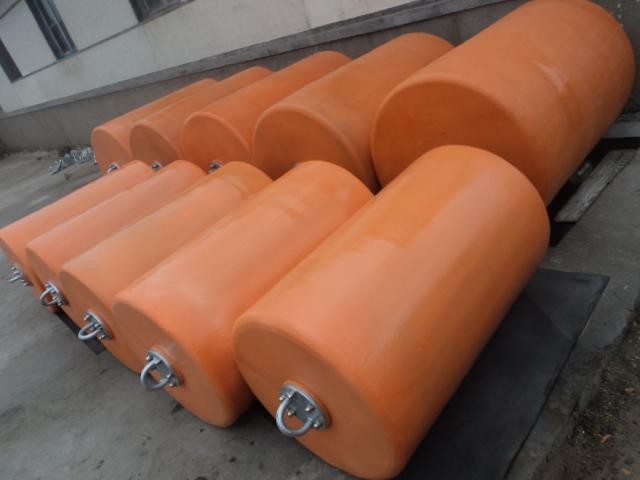

Ohter Product Photos
