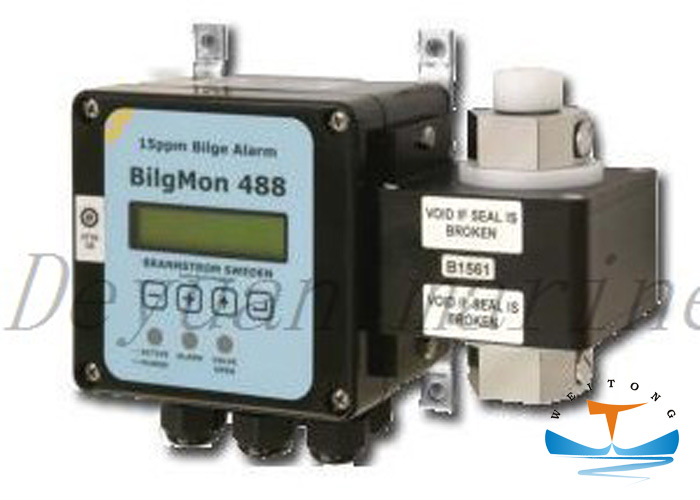

Marine 15PPM Bilge Alarm
Marine 15PPM Bilge Alarm device is designed in accordance with the International Maritime Organization MEPC. (49) resolution 107, approved by the China classification society (CCS) , is the latest generation monitiring instrument, applicable to ships, continuous monitoring of ship barge oil, with functions of 15 PPM transfinite alarm and control of oil conent. It is usually used with 15 PPM bilge oily water separator.
Function Test
1) Run oil free water through the instrument to purge the system.
2) Adjust the flow rate through the unit by using the small screws in the cell cap. Taking out a screw will increase the flow rate. NB: The flow rate should be checked on both, the clean water supply and the separator sample supply. If the clean water supply is obtained from a high pressure source, the flow rate will be higher than from the sample point. The flow rate is not influencing the accuracy of the instrument. The adjustment is only important for the time delay between the sample point and the monitor.
3) Switch on the instrument and make sure, that the Power LCD is illuminated and it displays the number "EE", with the fault LED on. Allow a few minutes for the system to warm up and stabilize. It works when the fault LED off and measure value displays.
4) The monitor will display "0" with clean water; if the value is higher than 0, it means there is air mixed up. Then it is necessary to check the entrance components and sample water pipeline and reset the position.
5) Through the front control panel offset to operate the display "0".
Marine 15PPM Bilge Alarm Main Performance Indicator
| Range | 0-30mg/l (up to 50mg/l) |
| Accuracy | >5mg/l |
| Linearity | >2% |
| Display | LCD |
| Voltage | 220VAC/110VAC ±10% 50Hz/60Hz 5% |
| Power | 10VA |
| Alarm Point | 1-15ppm |
| Factory Setting | 15ppm |
| Alarm output | Two-way relay output |
| Alarm Display | Yellow LED |
| Size | 360mmW×240mmH×105mD |
| Protection Class | IP45 |
| Weight | 7KG |
| Connection | R 1/4" |
| Standards | IMO.Res.MEPC.107(49)Resolution |
About US
Weitong Marine focus on developing and offering the most competetive marine products for worldwide clients with best service:
1. Quality Assurance & Inspection
We guarantee the quality,not just because we have a complete rigorous management, production and inspection processes to control the quality and avoid detail mistake, but also we attach much importance to customers’ satisfactory of product quality. What’s more, Mill Test Certificate can be provided for general products, and most of our products are approved by CCS, ABS, DNV, BV, NKK, KR, LR, GL, RINA etc.
2. Efficiency
Your request is promised to be reponsed within1-12 hours. Our experienced sales team get technical support from our engineer team to ensure swift offer and good communication.
3. On Time Delivery
We have rigorous production schedule and professional follow-up process to control the production time. Clients will be informed about the production process in time. Besides, we cooperate with reliable logistic partners to assure the goods to be delivered to you punctually.
4. Customization
If you need customization service, our experienced engineers are able to design the product as per your request or application.
5. Product Range
All marine equipment, accessories and technique solution can be offered.
6. After sales service
After shipping, we keep tracking the shipment, and once goods arrived, we will positively contact client for feedback.
We always insist on the values of “customer-oriented, integrity first” in global trade business. Whenever you need inquiry or help, you can always turn to Weitong Marine, we are always available to reply with answer or provide help over the phone, by email or other.
Should you have any comment or inquiry, please feel free to contact us for more details
Ms Kate
Tel: +86-756-8169003
Phone: +86-13923317268
sales@weitongmarine.com

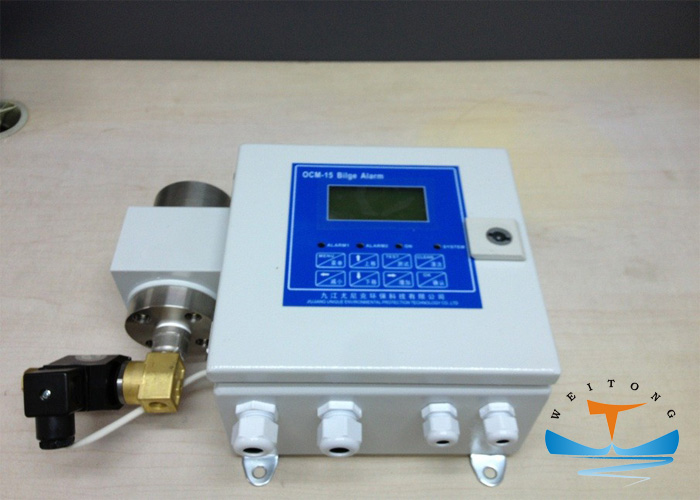

Ohter Product Photos
