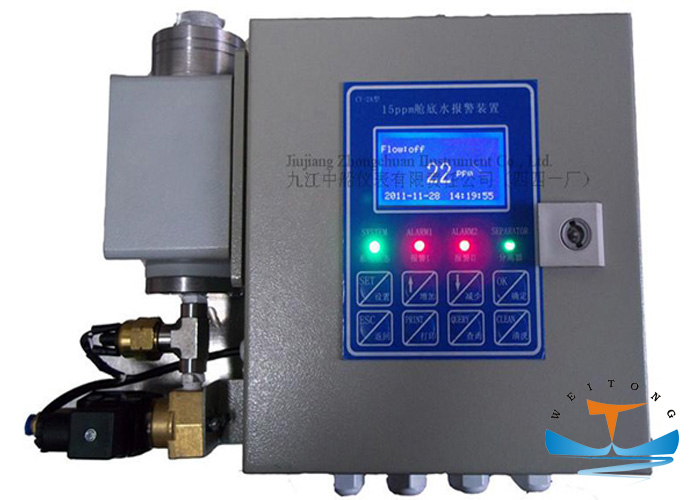

Marine 15PPM Bilge Alarm
Marine 15PPM Bilge Alarm is approved by the China Classification Society (CCS), and the performance indicators is in accord with the IMO Marine Environment Protection Committee MEPC.107 (49) resolution requirements. It isis a new type instrument for monitoring micro-oil content in waste water.It's suitable for contimuous monitoring of the oily water discharge in the bilge, with a 15 overrun alarm system and a controlling system for waste water discharge. In most case, it applied as a set device for oily water seperator.
Feature
(1) Applying the most advanced multi-band infrared measuring technique and the micro-processing technology, fast response with high-accuracy-measurement;
(2) The overall use of EMI suppression design to overcome the environmental impact on equipment,and improve system stability and equipment reliability;
(3) Real-time display of oil concentration and working state of the system.
(4) Real-time recording of the alarm status and automatically store data,historical data at any time to print;
(5) Measuring room to facilitate maintence and cleaning,simple operation;
(6) With the monitoring of operation condition,automatic control over discharge of sewage to function when equipment in failure,maintence or replacement
Specification
| Measuring range | 0-30ppm (display range 0-80ppm) |
| Measurement precision | (15ppm alarm) ± 5ppm (meet the IMO standard) |
| Display type | LED numeric display |
| Alarm indication | 4 red LED |
| Alarm relay | 2-way |
| Rated capacity of relay contact | 250VAC 3A (non-emotional) |
| Response time | ≤ 5 seconds |
| Output signal | 4-20mA |
| Environment temperature | 0 °C - 55 °C |
| Relative humidity | ≤ 93% |
| Sample liquid temperature | 1 - 55 °C |
| Sample liquid pressure | 0.1-0.6MPa |
| Sample liquid flow | 0.1-4L / min |
| Protection class | IP55 |
| Main power supply | 220/110VAC 50Hz/60Hz |
| Power Consumption | ≤ 20VA |
| Main power supply | 220/110VAC 50Hz/60Hz |
| Power Consumption | ≤ 20VA |
| Overall dimension | 400mm × 300mm × 160mm |
