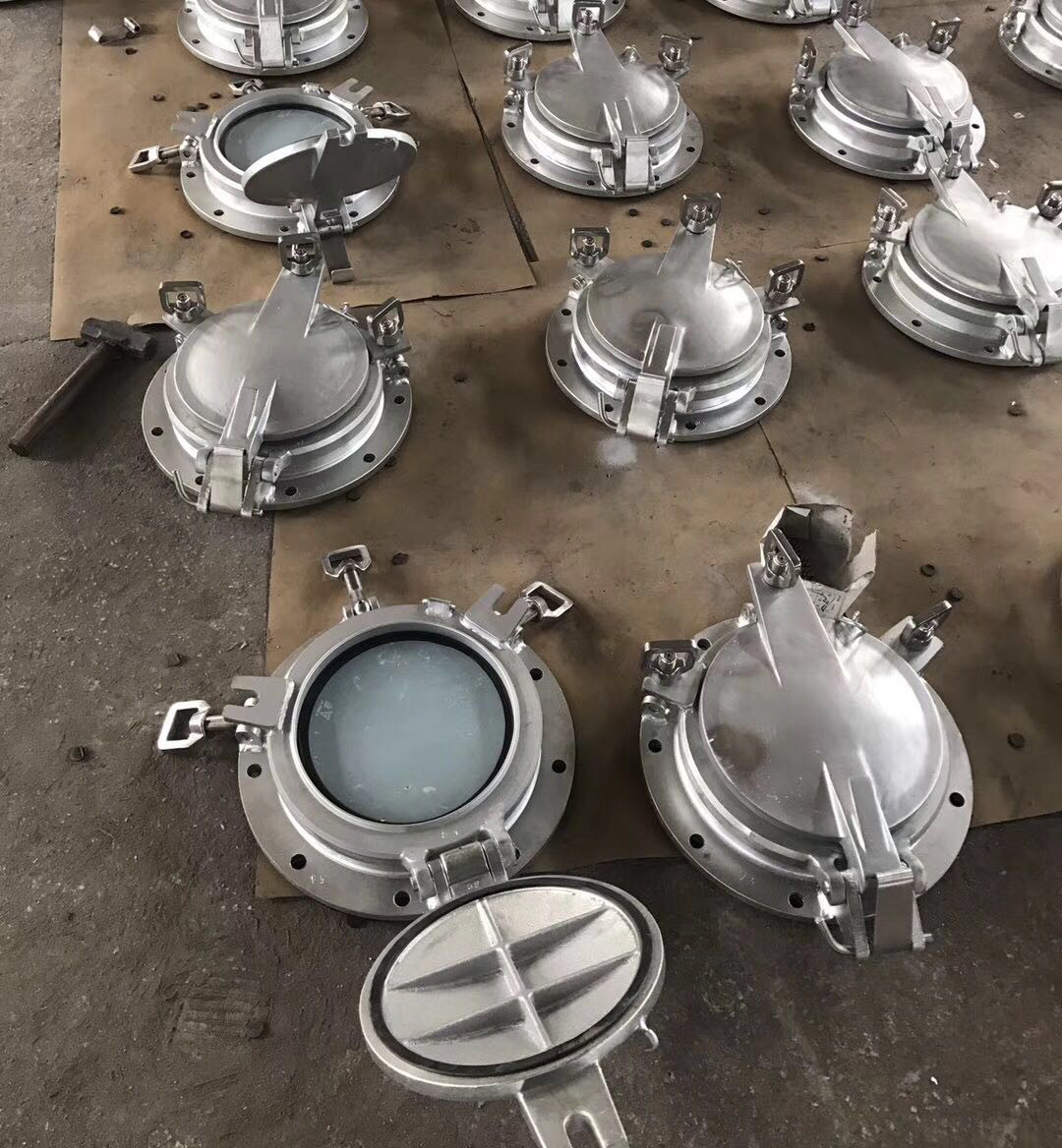

Marine Bolted Fixed Porthole Vessel A0 A60 Fire -proof Side Scuttles with Storm Cover
Description
Fireproof Side Scuttle (Firepoof Porthole) is a kind of fire resistant side scuttles made of steel, aluminum, stainless steel. It can be installed by welded or bolted; suitable for accommodations & other marine instructments with A60 fireproof requirement.
Standard: GB/T14413-93, IMO Res MSC 61(67), IMO Res. A.754(18)
Fire protection class: A60
Main Material:
Frame: Steel
Glass: Fireproof Glass
Marine side scuttle is used for sea-going ship and warships also could be used for inland ship.
Available in marine steel, stainless steel and aluminum alloy, copper materials
Hinged type, Water tight/ Weather tight and fireproof marine windows.
Fixed, opened (Bolted or Welded) Type.
Round or Right Angle corners for option
Left open/ right open or sliding mechanisms
Rubber gasket three years warranty
Specification
| Type | Nominal Size | Opening Model | Storm Cover | Application |
| Heavy Type | ∅200mm | Right & Left Opening, Joint hinged | Hook type,Pawl type | Water tight and gas tight requirements,above full load water line ,below freeboard. |
| ∅250mm |
| ∅300mm |
| ∅350mm |
| ∅400mm |
| Medium Type & Light Type | ∅200mm | Above freeboard,first deck. |
| ∅250mm |
| ∅300mm |
| ∅350mm | Right & Left Opening | - | Above freeboard for passenger ships. |
| ∅400mm |
| ∅450mm |
Other Marine Windows
We offers 3 types customized marine windows: standard duty, medium duty and heavity duty.
Material: Aluminum, Steel, Copper
Glass thickness: 6,8,10,12,15,18mm...
Open form: open type or fixed type
Way of installation bolt-on, welt-in
Main Types:
Fixed Rectangular Window for Wheel House
Ship's Ordinary Rectangular Window
Side Scuttles for Ship (also called as Porthole)
Skylight
Aluminum Alloy Sound Proof Window
Aluminium Alloy Sliding Window
Fireproof Window etc.
