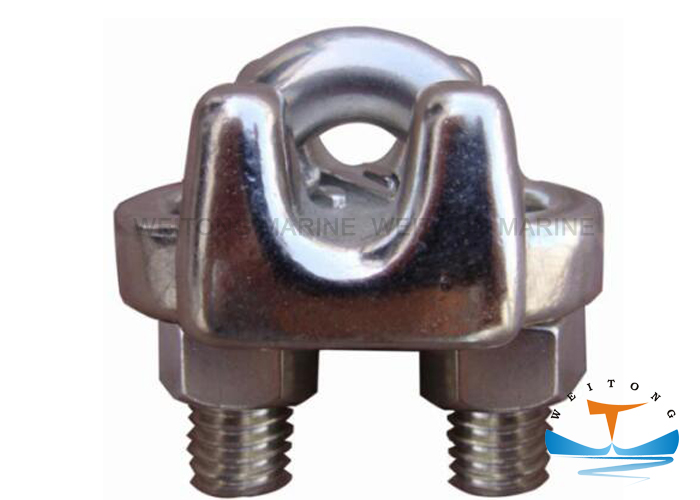

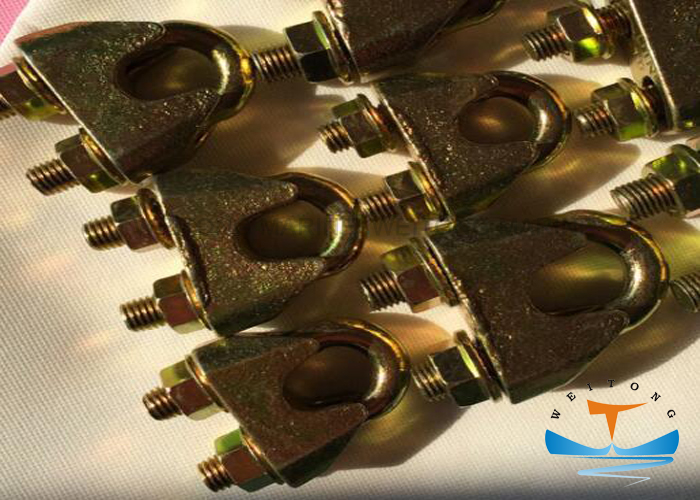

Galvanized Wire Rope Clip DIN1142
Wire Rope Clip is used on wire rope eye-loop connections or complete loops, end to end connections where socketing or splicing is not feasible or when a temporary joint is required.
Material: carbon steel, stainless steel, malleable iron, etc.
surface treatment: electro galvanized, hot dipped galvanized
size: from 3mm to 40mm
| Size(mm) | A | B | C | D | E | F | G | 100/WT(kg) |
| 5 | 12 | 13 | 13 | 5 | 13 | 25 | 20 | 2.08 |
| 6.5 | 14 | 16 | 17 | 6 | 14 | 30 | 26 | 4 |
| 8 | 18 | 20 | 20 | 8 | 18 | 39 | 33 | 8.2 |
| 10 | 20 | 20 | 24 | 8 | 21 | 40 | 38 | 9.2 |
| 13 | 17 | 28 | 30 | 12 | 29 | 55 | 52 | 27.5 |
| 16 | 32 | 32 | 35 | 14 | 35 | 64 | 64 | 43 |
| 19 | 36 | 32 | 36 | 14 | 40 | 68 | 69 | 49 |
| 22 | 40 | 34 | 40 | 16 | 44 | 74 | 80 | 68 |
| 26 | 46 | 38 | 50 | 20 | 51 | 84 | 91 | 117 |
| 30 | 54 | 41 | 55 | 20 | 59 | 95 | 107 | 140 |
| 34 | 60 | 45 | 60 | 22 | 67 | 105 | 119 | 213 |
| 40 | 68 | 49 | 65 | 24 | 77 | 117 | 135 | 268
|
