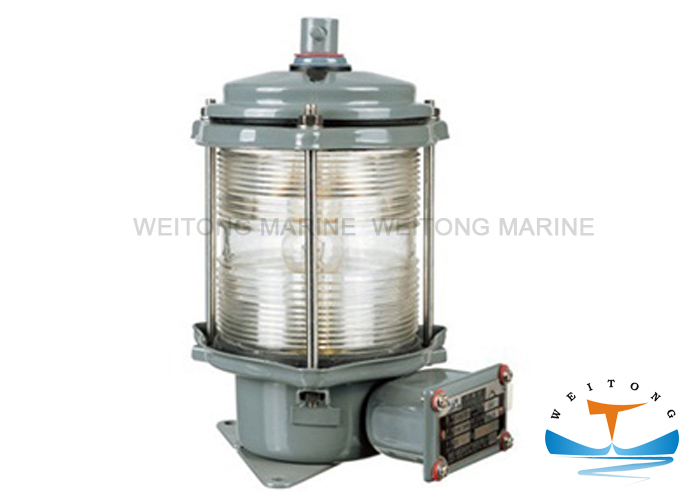

CXH-2C Single Deck Navigation Signal Light
The Navigation Signal Light used to the ship with length50M or above as lamp signal liaison when night navigation.
Standards
1. Confirm to the international regulation for preventing collision at sea, 1972 and grade entry norms for steel ships.
2. Confirm to the International Standard IEC60598-1-2008.
3. Confirm to the standard of marine electric signal light’s technical condition GB/T 3028-2012
Feathures
1. Easy to Install and replace the bulb with a leakage hole at the bottom.
2. The shell is made of Steel
3. The shade is made of polycarbonate, UV Resistance and non-discolouring color.
CXH-2C Single Deck Navigation Signal Light Specifications
| Name | Type | Visibility | Level Arc | Lamp Holder | Voltage/power | Protection Class | Cable Outside Dia | Color | Weight |
| Starboard Light | CXH1-2C | 3n.m | 112.5° | B15d | 24v/30W | IP56 | Φ10~Φ12 | Green | 1.8kg |
| Port Light | CXH2-2C | 3n.m | 112.5° | Red | 1.8kg |
| Masthead Light | CXH3-2C | 6n.m | 225° | White | 1.8kg |
| Stern Light | CXH4-2C | 3n.m | 135° | White/yellow | 1.8kg |
| All-Round | CXH6-2C | 3n.m | 360° | Red/white/yellow | 1.8kg |
About US
Weitong Marine focus on developing and offering the most competetive marine products for worldwide clients with best service:
1. Quality Assurance & Inspection
We guarantee the quality,not just because we have a complete rigorous management, production and inspection processes to control the quality and avoid detail mistake, but also we attach much importance to customers’ satisfactory of product quality. What’s more, Mill Test Certificate can be provided for general products, and most of our products are approved by CCS, ABS, DNV, BV, NKK, KR, LR, GL, RINA etc.
2. Efficiency
Your request is promised to be reponsed within1-12 hours. Our experienced sales team get technical support from our engineer team to ensure swift offer and good communication.
3.On Time Delivery
We have rigorous production schedule and professional follow-up process to control the production time. Clients will be informed about the production process in time. Besides, we cooperate with reliable logistic partners to assure the goods to be delivered to you punctually.
4. Customization
If you need customization service, our experienced engineers are able to design the product as per your request or application.
5. Product Range
All marine equipment, accessories and technique solution can be offered.
6.After sales service
After shipping, we keep tracking the shipment, and once goods arrived, we will positively contact client for feedback.
We always insist on the values of “customer-oriented, integrity first” in global trade business. Whenever you need inquiry or help, you can always turn to Weitong Marine, we are always available to reply with answer or provide help over the phone, by email or other.
Should you have any comment or inquiry, please feel free to contact us for more details
Ms kate
Tel: +86-756-8169003
Phone: +86-13923317268
sales@weitongmarine.com
Ohter Product Photos
Product Tags:
|
|

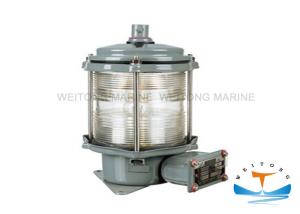

24V/30W CXH-2C Single Deck Navigation Signal Light Images
|
