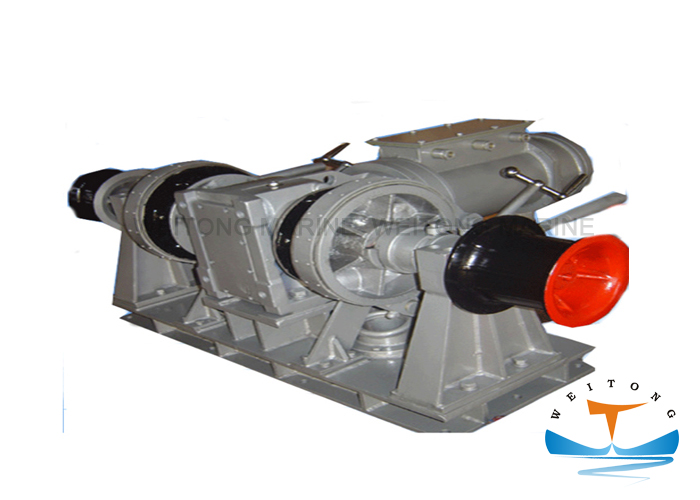

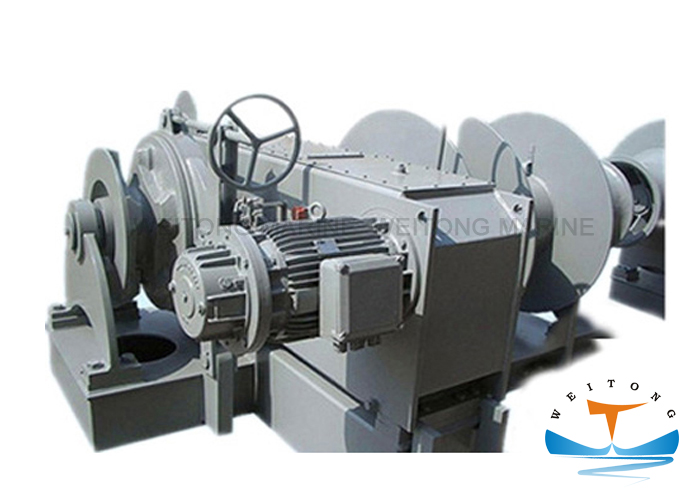

28mm Marine Windlass Electric / Hydraulic Anchor Mooring Winch
Anchor Windlass is specially applied for boat or ship anchoring, and it is important anchor machine which helps boat or ship docking or setting sail safely and quickly and keeping the position of boat or ship and also used for ship emergency brake. Windlass makes use of an integral gearbox and motor assembly, all typically located above deck, with a horizontal shaft through the unit and wheels for chain /or rope on either side.
Weitong Marine is a professional supplier of marine windlass and winch, marine capstans, shark jaw/towing pin, marine crane, steering gear systems etc. We can customize ordinary or special marine windlass and winch for your application according to your drawings or requirement with good quality at competitive price.
Features
* Reasonable compact structure design
* Small size, light weight
* Nice appearance
* Perfect starting and working efficiency
* Large torque and good stability
* Less noise
* Easy and safe operation,
* Perfect erosion resistant coating,
* Easy installation and low maintenance
Certificate:
* Classification Society: CCS, ABS, BV, DNV, GL, RINA, LR, RMRS, etc.
* NDT reports
* Official certificates
Marine Windlass Electric / Hydraulic Anchor Winch for Ship Specification
1, Driven Mode :Electric /Hydraulic
2. Configuration: It consists of the windlass, windlass brakes,warping end,hydraulic motor, drum, main axis, drum brake, operation mechanism of clutch,supporting walls and the base,etc.
3. Chain Diameter: From 12.5mm to 114mm.
4. Anchor hoist normal speed: ≥9m/min
5. Rated Pull: From 6 KN to 617 KN
6. Holding Load: with chain stopper,Breaking Load
7. Brake: Manual or Hydraulic Operated Band Brake
8. Claws Clutch: Manual or Hydraulic
9. Warping load: 5 KN to 350 KN
| Electric Anchor Windlass |
| Chain Dia(Φ mm) | Working Load(KN) | Supporting load | Working Speed (m/min) | Warping Load | Warping Speed(m/min) | Motor power |
| 14/16/17.5 | 8.3/10.9/13 | 51/67/80 | ≥12 | 8 | 10 | 4.3/1.7 |
| 19/20/22.5 | 15.3/17.9/20.6 | 95/110/126 | ≥12 | 10 | 10 | 8.5/3.5 |
| 24/26 | 24.5/28.7 | 149/175 | ≥9 | 20 | 8.5 | 8.5 |
| 26/28 | 28.7/33.3 | 175/202 | ≥9 | 20 | 8.5 | 11/11/7.5 |
| 28/30/32 | 33.3/38.3/43.5 | 202/231/261 | ≥9 | 30 | 8.5 | 16/16/11 |
| 32/34/36 | 43.5/49.1/55.1 | 261/294/329 | ≥9 | 30 | 8.5 | 16/16/11 |
| 32/34/36/38 | 43.5/49.1/55.1/61.4 | 261/294/329/365 | ≥9 | 30 | 8.5 | 22/22/16 |
| 38/40/42 | 61.4/68.0/75 | 365/402/442 | ≥9 | 50 | 8.5 | 22/22/16 |
| 42/44/46 | 75.0/82.3/89.9 | 442/483/526 | ≥9 | 30 | 12 | 22/22/16 |
| 44/46/48 | 82.3/89.9/97.9 | 483/526/570 | ≥9 | 30 | 12 | 30/30/22 |
| 44/46/48 | 106.3/114.9/123.9 | 617/664/713 | ≥9 | 50 | 12 | 30/30/22 |
| 56/58/60 | 133.3/143.0/153 | 761/816/870 | ≥9 | 50 | 14 | 45/45/30 |
| 62/64 | 163.4/174.1 | 925/982 | ≥9 | 50 | 14 | 45/45/30 |
| 66/68 | 185.1/196.5 | 1040/1098 | ≥9 | 50 | 14 | 45/45/30 |
| 66/68 | 208.3/226.5 | 1160/1254 | ≥9 | 50 | 15 | 60/60/45 |
| 66/68 | 245.5/258.6 | 1350/1416 | ≥9 | 50 | 15 | 60/60/45 |
| 81/84 | 311.7/335.2 | 2171/2320 | ≥9 | 140 | 15 | 75/75/36 |
| 87/90 | 359.5/384.8 | 2473/2629 | ≥9 | 150 | 16 | 75/75/36 |
| 92/95 | 402/428.7 | 2735/2898 | ≥9 | 200 | 16 | 85/85/64 |
| 97/100 | 446.9/475 | 2995/3162 | ≥9 | 250 | 17 | 100/100/50 |
| 105/107 | 523.7/543.8 | 3612/3750 | ≥9 | 300 | 18 | 110/110/55 |
| 112/114 | 595.8/617.3 | 4109/4228 | ≥9 | 350 | 19 | 132/132/66 |
ABOUT US
Weitong Marine focus on developing and offering the most competetive marine products for worldwide clients with best service:
1. Quality Assurance & Inspection
We guarantee the quality,not just because we have a complete rigorous management, production and inspection processes to control the quality and avoid detail mistake, but also we attach much importance to customers’ satisfactory of product quality. What’s more, Mill Test Certificate can be provided for general products, and most of our products are approved by CCS, ABS, DNV, BV, NKK, KR, LR, GL, RINA etc.
2. Efficiency
Your request is promised to be reponsed within1-12 hours. Our experienced sales team get technical support from our engineer team to ensure swift offer and good communication.
3. On Time Delivery
We have rigorous production schedule and professional follow-up process to control the production time. Clients will be informed about the production process in time. Besides, we cooperate with reliable logistic partners to assure the goods to be delivered to you punctually.
4. Customization
If you need customization service, our experienced engineers are able to design the product as per your request or application.
5. Product Range
All marine equipment, accessories and technique solution can be offered.
6. After sales service
After shipping, we keep tracking the shipment, and once goods arrived, we positively contact client for feedback.
We always insist on the values of “customer-oriented, integrity first” in global trade business. Whenever you need inquiry or help, you can always turn to Weitong Marine, we are always available to reply with answer or provide help over the phone, by email or other.
Should you have any comment or inquiry, please feel free to contact us for more details
Ms kate
Tel: +86-756-8169003
Phone: +86-13923317268
sales@weitongmarine.com

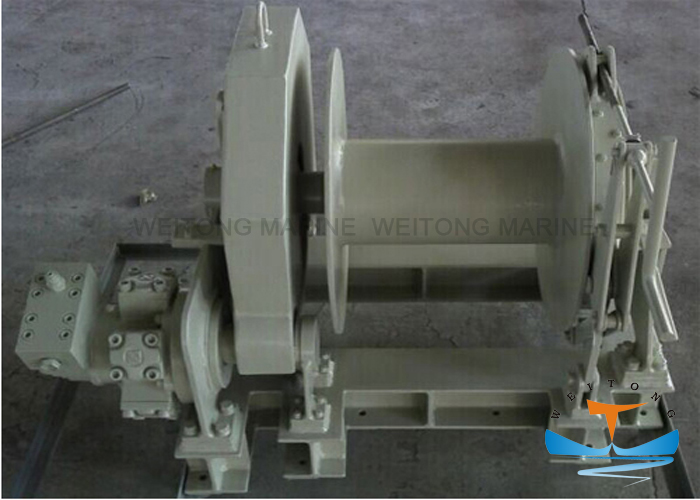

Ohter Product Photos
