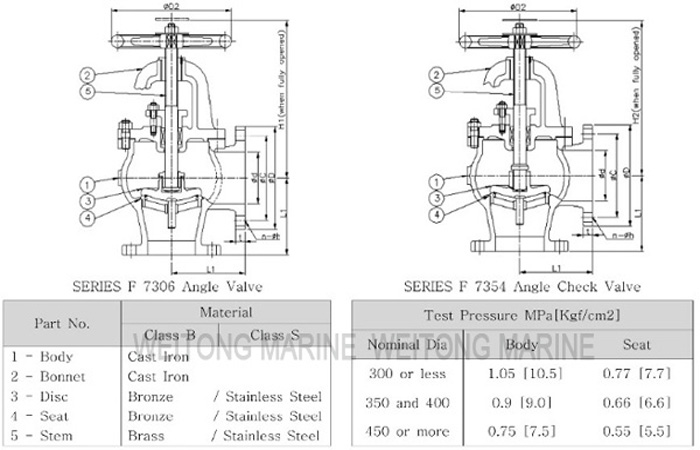

JIS F7354 5K Marine Cast Iron Screw-Down Check Angle Valves
| SIZE | d | L1 | D | C | n-h | t | H1 | H2 | D2 | F7305(Kg) | F7354(Kg) |
| 50 | 50 | 100 | 130 | 105 | 4-15 | 16 | 240 | 240 | 160 | 12.9 | 13.8 |
| 65 | 65 | 115 | 155 | 130 | 4-15 | 18 | 255 | 245 | 180 | 18.2 | 18.2 |
| 80 | 80 | 130 | 180 | 145 | 4-19 | 18 | 265 | 255 | 180 | 23.4 | 23.3 |
| 100 | 100 | 150 | 200 | 165 | 8-19 | 20 | 310 | 300 | 224 | 33.7 | 33.5 |
| 125 | 125 | 170 | 235 | 200 | 8-19 | 20 | 330 | 320 | 250 | 46.2 | 46.5 |
| 150 | 150 | 190 | 265 | 230 | 8-19 | 22 | 380 | 365 | 280 | 63.4 | 64 |
| 200 | 200 | 220 | 320 | 280 | 8-23 | 24 | 450 | 425 | 315 | 105 | 104 |
| 250 | 250 | 275 | 385 | 345 | 12-23 | 26 | 540 | 510 | 355 | 176 | 175 |
| 300 | 300 | 310 | 430 | 390 | 12-23 | 28 | 610 | 585 | 400 | 243 | 243 |
| 350 | 335 | 360 | 480 | 435 | 12-25 | 30 | 690 | 660 | 500 | 327 | 336 |
| 400 | 380 | 395 | 540 | 495 | 16-25 | 30 | 770 | 730 | 560 | 459 | 455 |
| 450 | 430 | 440 | 605 | 555 | 16-25 | 30 | 870 | 835 | 630 | 618 | 618 |
| 500 | 480 | 485 | 655 | 605 | 20-25 | 32 | 1020 | 915 | 710 | 800 | 800 |
| 550 | 530 | 530 | 720 | 665 | 20-27 | 32 | 1350 | 985 | 800 | 1161 | 1161 |
About US
Weitong Marine focus on developing and offering the most competetive marine products for worldwide clients with best service:
1. Quality Assurance & Inspection
We guarantee the quality,not just because we have a complete rigorous management, production and inspection processes to control the quality and avoid detail mistake, but also we attach much importance to customers' satisfactory of product quality. What's more, Mill Test Certificate can be provided for general products, and most of our products are approved by CCS, ABS, DNV, BV, NKK, KR, LR, GL, RINA etc.
2. Efficiency
Your request is promised to be reponsed within1-12 hours. Our experienced sales team get technical support from our engineer team to ensure swift offer and good communication.
3. On Time Delivery
We have rigorous production schedule and professional follow-up process to control the production time. Clients will be informed about the production process in time. Besides, we cooperate with reliable logistic partners to assure the goods to be delivered to you punctually.
4. Customization
If you need customization service, our experienced engineers are able to design the product as per your request or application.
5. Product Range
All marine equipment, accessories and technique solution can be offered.
6. After sales service
After shipping, we keep tracking the shipment, and once goods arrived, we will positively contact client for feedback.
We always insist on the values of "customer-oriented, always with integrity" in global trading business. Whenever you need inquiry or help, you can turn to Weitong Marine over the phone, by email or other.
Should you have any comment or inquiry, please feel free to contact us for more details
kate Yang
Tel: +86-756-8169003
Phone: +86-13923317268
Ohter Product Photos
Product Tags:
|
|
JIS F7354 5K Marine Valve , Cast Iron Screw - Down Check Angle Valves Images
|
