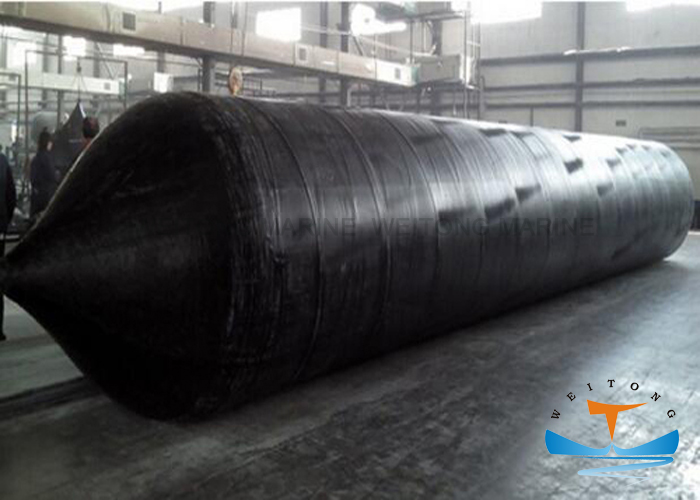

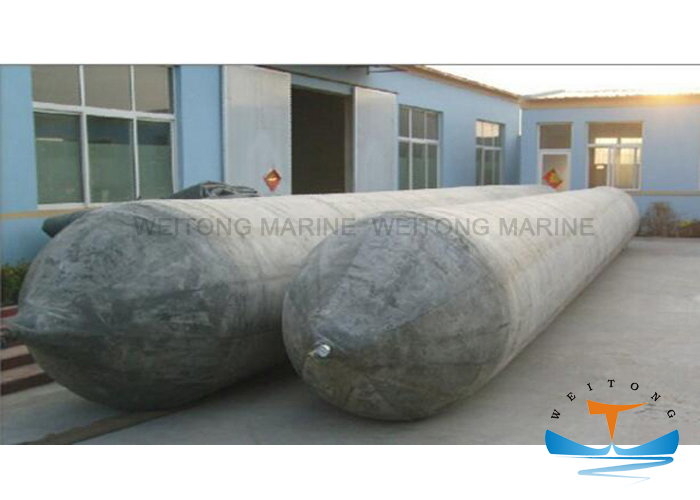

Heavy Moving Airbag Ship Launching Pneumatic Airbag Marine Rubber Airbags
Marine Airbag is widely applied for luanching and loading tankers, tugboats, towboat, barges, cargo ship, ferries and other special vessels up to 100,000 DWT; lifting and Moving sucken Ship; Salvaging stranded boats. They are also known as inflatable marine airbags, roller bags, air lift bags, and salvage bags.
Mairne airbags are made of heavy-duty synthetic-tire-cord layers with inner and outside rubber layers in long cylindrical balloon shape, consists of three parts: End ironwork,end taper body and cylinder body. is an innovative technology used in ship launching or upgrading in shipbuilding.
Features:
1.long lifespan
2.movable and reusable
3.saving investment costs
4.saving labor and time
5.leading manufacturer of marine supplies
6.good air tightness
7.strict inspection
8.fine work
Certificate: ABS,CCS,BV,DNV, etc.
Specification
| Diameter (m) | Length (m) | Workingpressure (Kpa) | Bearing capacity (KN/m) | | Diameter (m) | Length (m) | Workingpressure (Kpa) | Bearing capacity (KN/m) |
| 0.8 | 1 | 260 | 229 | 1.5 | 1 | 150 | 247 |
| 2 | 280 | 246 | 2 | 170 | 280 |
| 3 | 300 | 364 | 3 | 190 | 313 |
| 4 | 320 | 281 | 4 | 210 | 346 |
| 5 | 340 | 299 | 5 | 230 | 379 |
| 6 | 360 | 317 | 6 | 250 | 412 |
| 1 | 1 | 220 | 242 | 1.8 | 1 | 130 | 257 |
| 2 | 240 | 264 | 2 | 150 | 297 |
| 3 | 260 | 386 | 3 | 170 | 336 |
| 4 | 280 | 308 | 4 | 190 | 376 |
| 5 | 300 | 330 | 5 | 210 | 416 |
| 6 | 320 | 352 | 6 | 230 | 455 |
| 1.2 | 1 | 180 | 238 | 2 | 1 | 110 | 242 |
| 2 | 200 | 264 | 2 | 130 | 286 |
| 3 | 220 | 290 | 3 | 150 | 330 |
| 4 | 240 | 317 | 4 | 170 | 374 |
| 5 | 260 | 343 | 5 | 190 | 418 |
| 6 | 280 | 369 | 6 | 210 | 426 |
