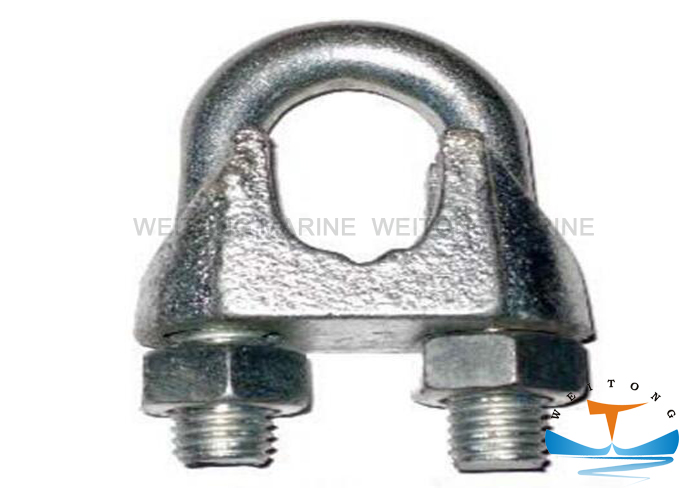

US Type Wire Rope Clips
US Type Wire Rope Clips are used to fix the wire rope. We offer S Type Drop Forged Wire Rope Clip,US Type Malleable Wire Rope Clip,Type A Wire Rope Clip,Din741 Wire Rope Clip,Type B Wire Rope Clips for option. Can be Drop forged, Casting,Polished.
Material: Carbon steel, Malleable Iron, Stainless steel 304 or 316
Sureface finish: Hot Dipped Galvanized, Electro Galvanized, Color Painted, High polished, Mirror Polished
Size: Different size available (1/8''-1 1/2'')
Special requirement and marks can be made according to customers requirements
| Pope DIA (IN)/100(1bs.) | Weight Dimensions(in.) | A | B | C | D | E | F | G | H |
| 1/8 | 2.5 | 1.94 | 1.31 | 1.06 | 0.69 | 0.25 | 0.16 | 0.05 | 0.13 |
| 3/16 | 2.5 | 1.94 | 1.31 | 1.06 | 0.69 | 0.31 | 0.22 | 0.05 | 0.13 |
| 1/4 | 3.75 | 1.94 | 1.31 | 1.06 | 0.69 | 0.38 | 0.28 | 0.05 | 0.13 |
| 5/16 | 3.75 | 2.13 | 1.5 | 1.25 | 0.81 | 0.44 | 0.34 | 0.05 | 0.13 |
| 3/8 | 6.25 | 2.38 | 1.63 | 1.47 | 0.94 | 0.53 | 0.41 | 0.06 | 0.16 |
| 1/2 | 12.5 | 2.75 | 1.88 | 1.75 | 1.13 | 0.69 | 0.53 | 0.08 | 0.19 |
| 5/8 | 25 | 3.5 | 2.25 | 2.38 | 1.38 | 0.91 | 0.66 | 0.13 | 0.34 |
| 3/4 | 50 | 3.75 | 2.5 | 2.69 | 1.63 | 1.08 | 0.78 | 0.14 | 0.34 |
| 7/8 | 85 | 5 | 3.5 | 3.19 | 1.88 | 1.27 | 0.94 | 0.16 | 0.44 |
| 1 | 100 | 6.69 | 4.25 | 3.75 | 2.5 | 1.39 | 1.06 | 0.16 | 0.41 |
| 11/8-11/4 | 175 | 6.25 | 4.5 | 4.31 | 2.75 | 1.75 | 1.31 | 0.22 | 0.5
|
