Marine US Type Turnbuckles with Jaw & Jaw
Turnbuckle is a device used for adjusting the tension or length of ropes, cables, tie rods, and other tensioning system. There two threaded eye bolts, screwed into each end of a small metal frame. One is with a left-hand thread and the other one with a right-hand thread. The tension can be adjusted by rotating the frame. Iit's forged, free forged or casting. Surface with original color, galvanised, or hot galvanized
Material: 45# Steel, Q235
Marine US Type Turnbuckles with Jaw & Jaw Specification
| Thread Dia & Take Up (in.) | Working Load Limit (lbs)* | Weight Each (lbs)* | Dimensions(in) |
| A | B | E | G | J | K | M | N | BB |
| 1/4x4 | 500 | 0.37 | 0.25 | 0.45 | 1.66 | 0.64 | 11.19 | 7.19 | 12.18 | 8.18 | 4.07 |
| 5/16x41/2 | 800 | 0.56 | 0.31 | 0.5 | 2.02 | 0.87 | 13.07 | 8.57 | 14.12 | 9.62 | 4.58 |
| 3/8x6 | 1200 | 0.85 | 0.38 | 0.53 | 2.11 | 0.85 | 16.25 | 10.25 | 17.5 | 11.5 | 6.1 |
| 1/2x6 | 2200 | 1.82 | 0.5 | 0.64 | 3.22 | 1.07 | 18.65 | 12.65 | 20.14 | 14.14 | 6.03 |
| 1/2x9 | 2200 | 2.29 | 0.5 | 0.64 | 3.2 | 1.07 | 24.94 | 15.94 | 26.43 | 17.43 | 9.36 |
| 1/2x12 | 2200 | 2.71 | 0.5 | 0.64 | 3.2 | 1.07 | 30.94 | 18.94 | 32.43 | 20.43 | 12.36 |
| 5/8x6 | 3500 | 3.21 | 0.63 | 0.79 | 3.9 | 1.32 | 19.74 | 13.74 | 21.82 | 15.82 | 6.03 |
| 5/8x9 | 3500 | 3.95 | 0.63 | 0.79 | 3.89 | 1.32 | 26.08 | 17.08 | 28.16 | 19.16 | 9.39 |
| 5/8x12 | 3500 | 4.58 | 0.63 | 0.79 | 3.89 | 1.32 | 32.08 | 20.08 | 34.16 | 22.16 | 12.39 |
| 3/4x6 | 5200 | 4.8 | 0.75 | 0.97 | 4.71 | 1.52 | 21.09 | 15.09 | 23.68 | 17.68 | 6.13 |
| 3/4x9 | 5200 | 5.85 | 0.75 | 0.97 | 4.68 | 1.52 | 27.49 | 18.49 | 30.08 | 21.08 | 9.59 |
| 3/4x12 | 5200 | 6.72 | 0.75 | 0.97 | 4.68 | 1.52 | 33.49 | 21.49 | 36.08 | 24.08 | 12.59 |
| 3/4x18 | 5200 | 8.45 | 0.75 | 0.97 | 4.71 | 1.52 | 45.49 | 27.49 | 48.08 | 30.08 | 18.53 |
| 7/8x12 | 7200 | 9.37 | 0.88 | 1.16 | 5.5 | 1.77 | 34.65 | 22.65 | 37.62 | 25.62 | 12.16 |
| 7/8x18 | 7200 | 11.8 | 0.88 | 1.16 | 5.5 | 1.77 | 47.12 | 29.12 | 50.09 | 32.09 | 18.63 |
| 1x6 | 10000 | 10.4 | 1 | 1.34 | 6.09 | 2.05 | 23.82 | 17.82 | 27.18 | 21.18 | 6.18 |
| 1x12 | 10000 | 13.8 | 1 | 1.34 | 6.09 | 2.05 | 35.82 | 23.82 | 39.18 | 27.18 | 12.18 |
| 1x18 | 10000 | 17.1 | 1 | 1.34 | 6.09 | 2.05 | 47.82 | 29.82 | 51.18 | 33.18 | 18.18 |
| 1x24 | 10000 | 21 | 1 | 1.34 | 6.06 | 2.05 | 60.42 | 36.42 | 63.78 | 39.78 | 24.84 |
| 11/4x12 | 15200 | 21.9 | 1.25 | 1.84 | 8.09 | 2.82 | 39.37 | 27.37 | 43.58 | 31.58 | 12.06 |
| 11/4x18 | 15200 | 25.9 | 1.25 | 1.84 | 8.09 | 2.82 | 51.37 | 33.37 | 55.58 | 37.58 | 18.06 |
| 11/4x24 | 15200 | 29.8 | 1.25 | 1.84 | 8.09 | 2.82 | 63.93 | 39.93 | 68.14 | 44.14 | 24.62 |
| 11/2x12 | 21400 | 32.6 | 1.5 | 2.06 | 8.93 | 2.81 | 40.76 | 28.76 | 45.68 | 33.68 | 12.32 |
| 11/2x18 | 21400 | 38 | 1.5 | 2.06 | 8.93 | 2.81 | 52.76 | 34.76 | 57.68 | 39.68 | 18.32 |
| 11/2x24 | 21400 | 43.5 | 1.5 | 2.06 | 8.93 | 2.81 | 65.38 | 41.38 | 70.3 | 46.3 | 24.94 |
| 13/4x18 | 28000 | 53.5 | 1.75 | 2.6 | 9.36 | 3.35 | 53.35 | 35.35 | 59.16 | 41.16 | 18.37 |
| 13/4x24 | 28000 | 61.1 | 1.75 | 2.6 | 9.36 | 3.35 | 65.35 | 41.35 | 71.16 | 47.16 | 24.37 |
| 2x24 | 37000 | 96.3 | 2 | 2.62 | 11.8 | 3.74 | 69.64 | 45.64 | 76.72 | 52.72 | 24.48 |
| 2 1/2x24 | 60000 | 167 | 2.5 | 3.06 | 13.26 | 4.44 | 72.97 | 48.97 | 82.18 | 58.18 | 24.6 |
| 2 3/4x24 | 75000 | 199 | 2.75 | 3.69 | 14.92 | 4.19 | 74.75 | 50.75 | 85.5 | 61.5 | 24.65 |
We provide various kinds of turnbuckles with different sizes

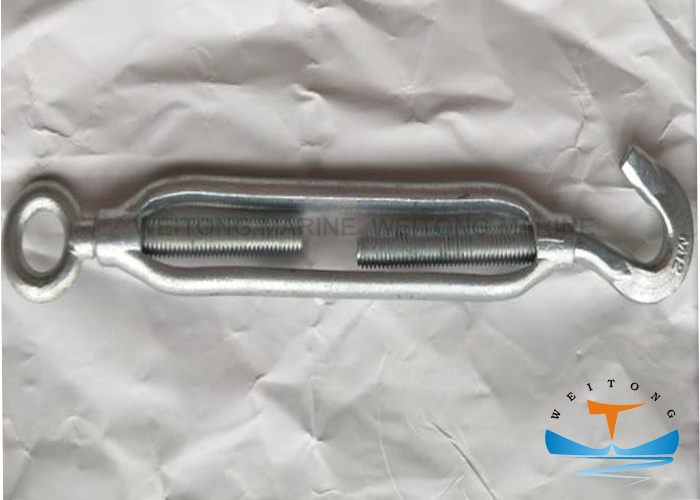

US Type Turnbuckle with Eye and Hook
US Type Turnbuckles with Hook and Hook
US Type Turnbuckles with Eye and eye
US Type Turnbuckle with Eye and Jaw
US Type Turnbuckle with Jaw and Jaw

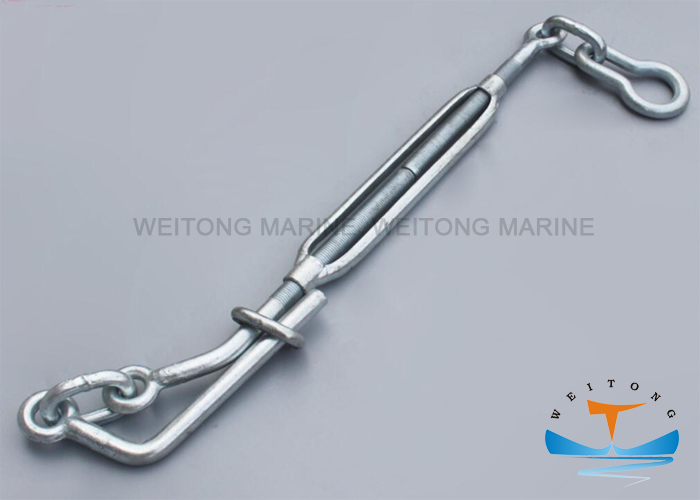

Lashing Turnbuckles
