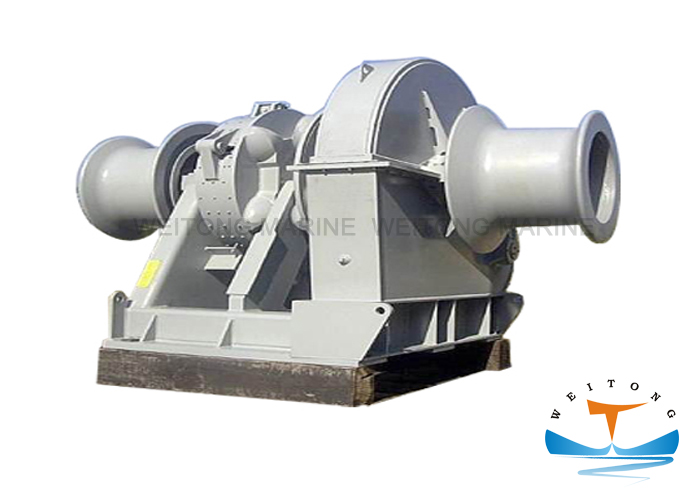

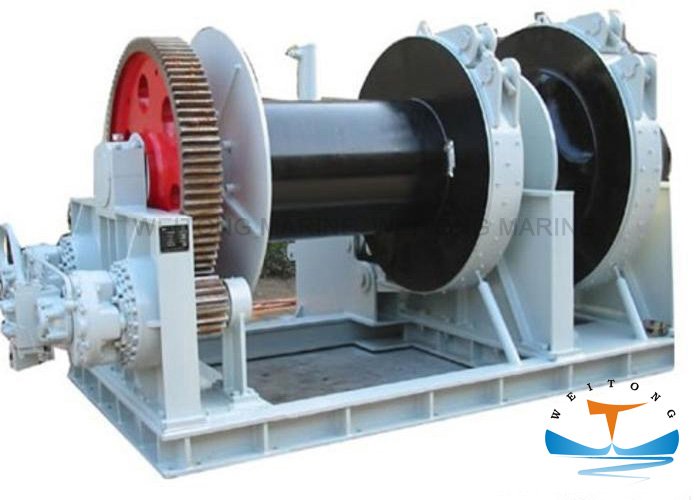

Marine Windlass Electric / Hydraulic Anchor Winch for Ship
Anchor Windlass is specially applied for boat or ship anchoring, and it is important anchor machine which helps boat or ship docking or setting sail safely and quickly and keeping the position of boat or ship and also used for ship emergency brake. Windlass makes use of an integral gearbox and motor assembly, all typically located above deck, with a horizontal shaft through the unit and wheels for chain /or rope on either side.
Weitong Marine is a professional supplier of marine windlass and winch, marine capstans, shark jaw/towing pin, marine crane, steering gear systems etc. We can customize ordinary or special marine windlass and winch for your application according to your drawings or requirement with good quality at competitive price.
Features
* Reasonable compact structure design
* Small size, light weight
* Nice appearance
* Perfect starting and working efficiency
* Large torque and good stability
* Less noise
* Easy and safe operation,
* Perfect erosion resistant coating,
* Easy installation and low maintenance
Certificate:
* Classification Society: CCS, ABS, BV, DNV, GL, RINA, LR, RMRS, etc.
* NDT reports
* Official certificates
Specification
* Driven Mode: Electric / hydraulic/diesel drive
* chain dia.: 12.5mm to 114 (mm)
* working load: 5KN to 617.3 KN
* working speed : ≥9 (m/min)
* mooring pull(warping load): 5 to 350 (kN)
* drum capacity : 11×*100 to 48*200 (mm*m)
| Chain Dia | Working Load | Supporting Load | Working
Speed | Warping
Load | Motor Power (KW) |
| Φ(mm) | (KN) | (KN) | m/min | KN | Electric | Hydraulic |
| 12.5 | 5.9 | 30 | ≥9 | 5 | 3/1.2 | |
| 14/16/17.5 | 8.3/10.9/13.0 | 51/67/80 | ≥9 | 8 | 4.3/1.7 | 5.5 |
| 19/20.5/22 | 15.3/17.9/20.6 | 95/110/126 | ≥9 | 10 | 8.5/3.5 | 7.5 |
| 24/26 | 24.5/28.7 | 149/175 | ≥9 | 20 | 8.5/3.5 | 11 |
| 28/30 | 33.3/38.3 | 202/231 | ≥9 | 30 | 11/11/7.5 | 15 |
| 32/34/36 | 43.5/49.1/55.1 | 261/294/329 | ≥9 | 30 | 16/16/11 | 22 |
| 38/40/42 | 61.4/68.0/75.0 | 365/402/442 | ≥9 | 40 | 22/22/16 | 30 |
| 44/46/48 | 82.3/89.9/97.9 | 483/526/570 | ≥9 | 50 | 30/30/22 | 37 |
| 50/52/54 | 106.3/114.9/123.9 | 617/664/713 | ≥9 | 50 | 30/30/22 | 45 |
| 56/58/60 | 133.3/143.0/153 | 764/816/870 | ≥9 | 60 | 45/45/30 | 55 |
| 62/64 | 163.4/174.1 | 925/982 | ≥9 | 80 | 45/45/30 | 55 |
| 66/68 | 185.1/196.5 | 1040/1098 | ≥9 | 100 | 45/45/30 | 75 |
| 70/73 | 208.3/226.5 | 1160/1254 | ≥9 | 100 | 60/60/45 | 75 |
| 76/78 | 245.5/258.6 | 1350/1416 | ≥9 | 125 | 60/60/45 | 90 |
| 81/84 | 311.7/335.2. | 2171/2320 | ≥9 | 140 | 75/75/36 | 110 |
| 87/90 | 359.5/384.8 | 2473/2629 | ≥9 | 150 | 75/75/36 | 120 |
| 92/95 | 402.0/428.7 | 2735/2898 | ≥9 | 200 | 85/85/64 | 130 |
| 97/100 | 446.9/475.0 | 2995/3162 | ≥9 | 250 | 100/100/150 | 150 |
| 105/107 | 523.7/543.8 | 3612/3750 | ≥9 | 300 | 110/110/55 | 180 |
| 112/114 | 595.8/617.3 | 4109/4428 | ≥9 | 350 | 132/132/66 | 200 |
